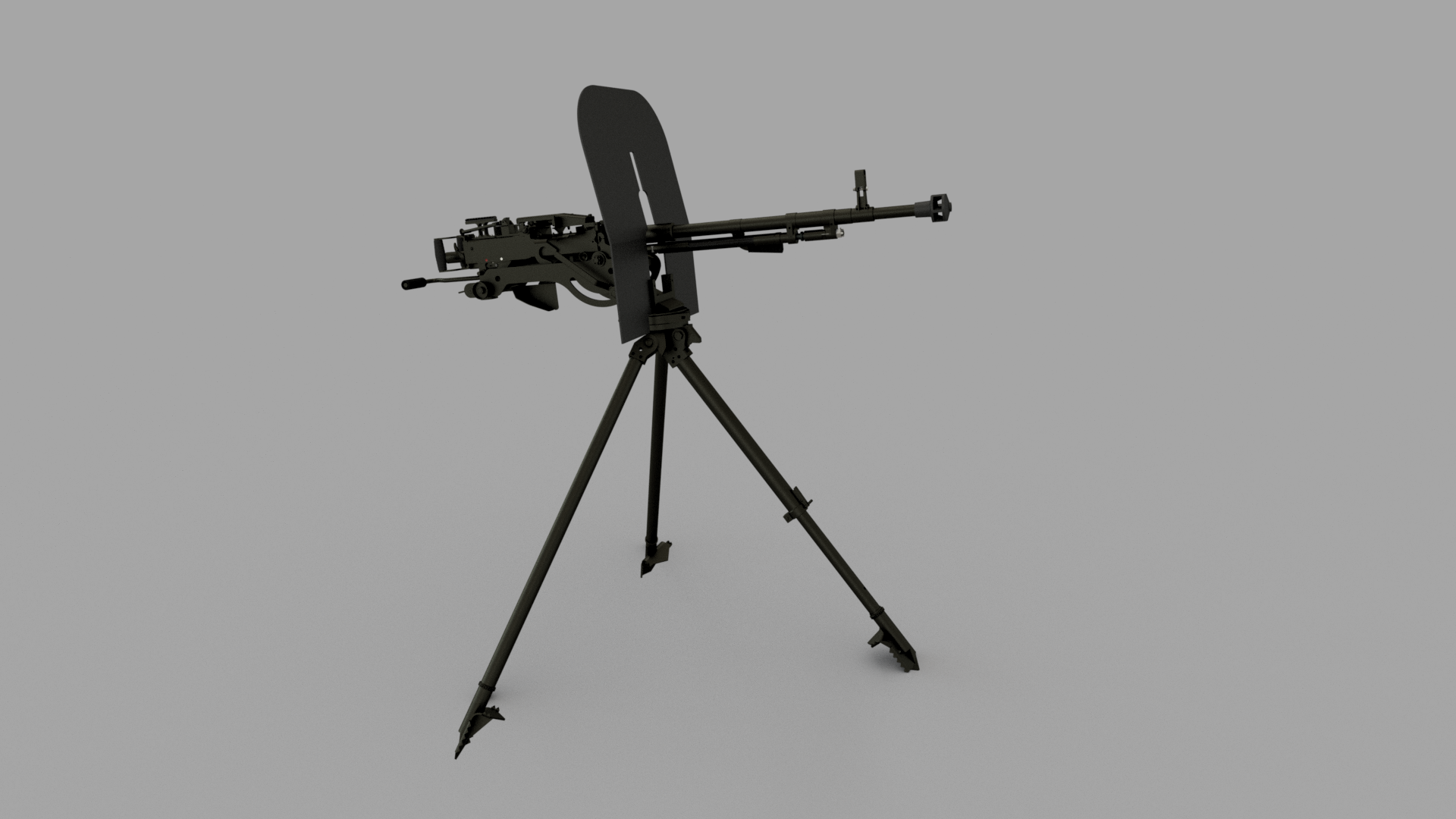

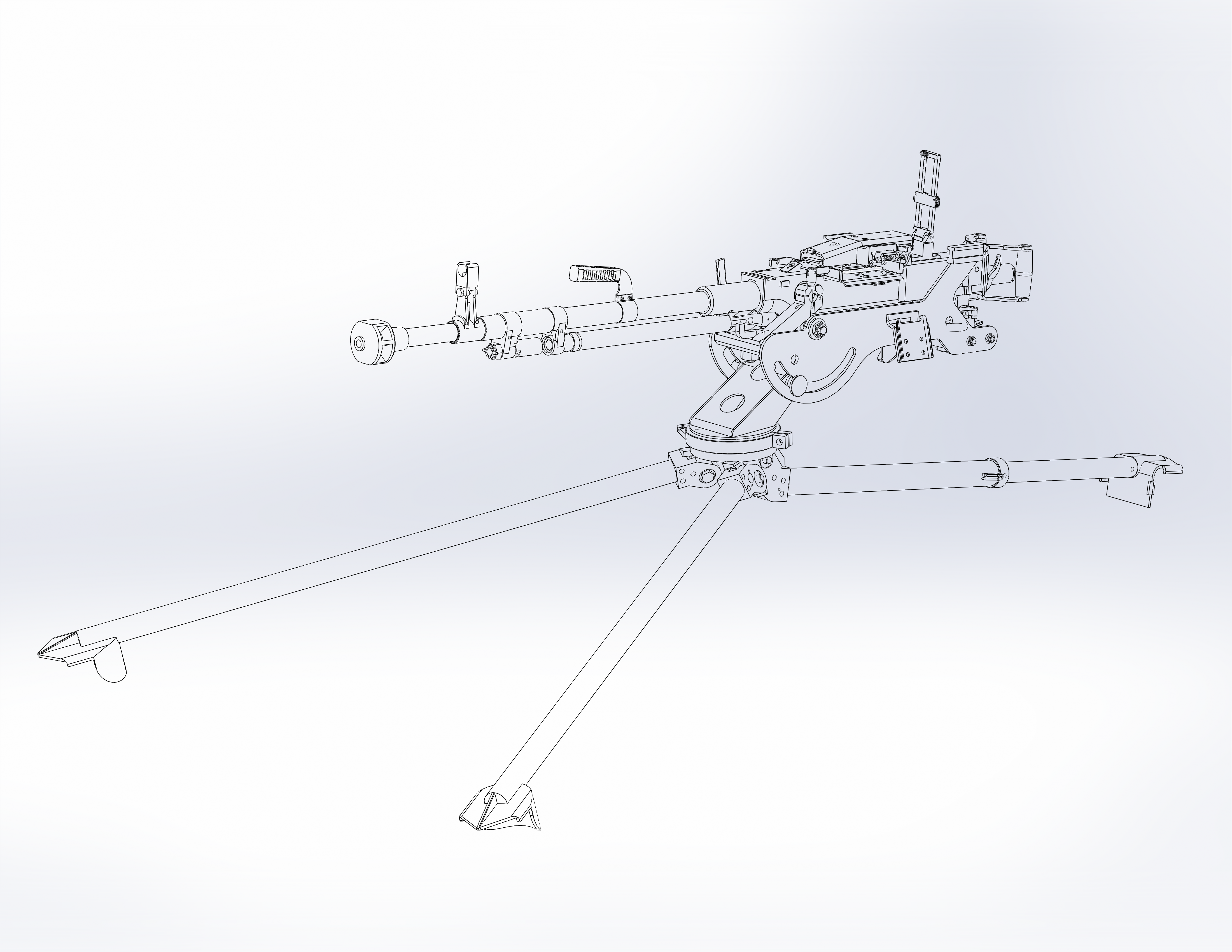

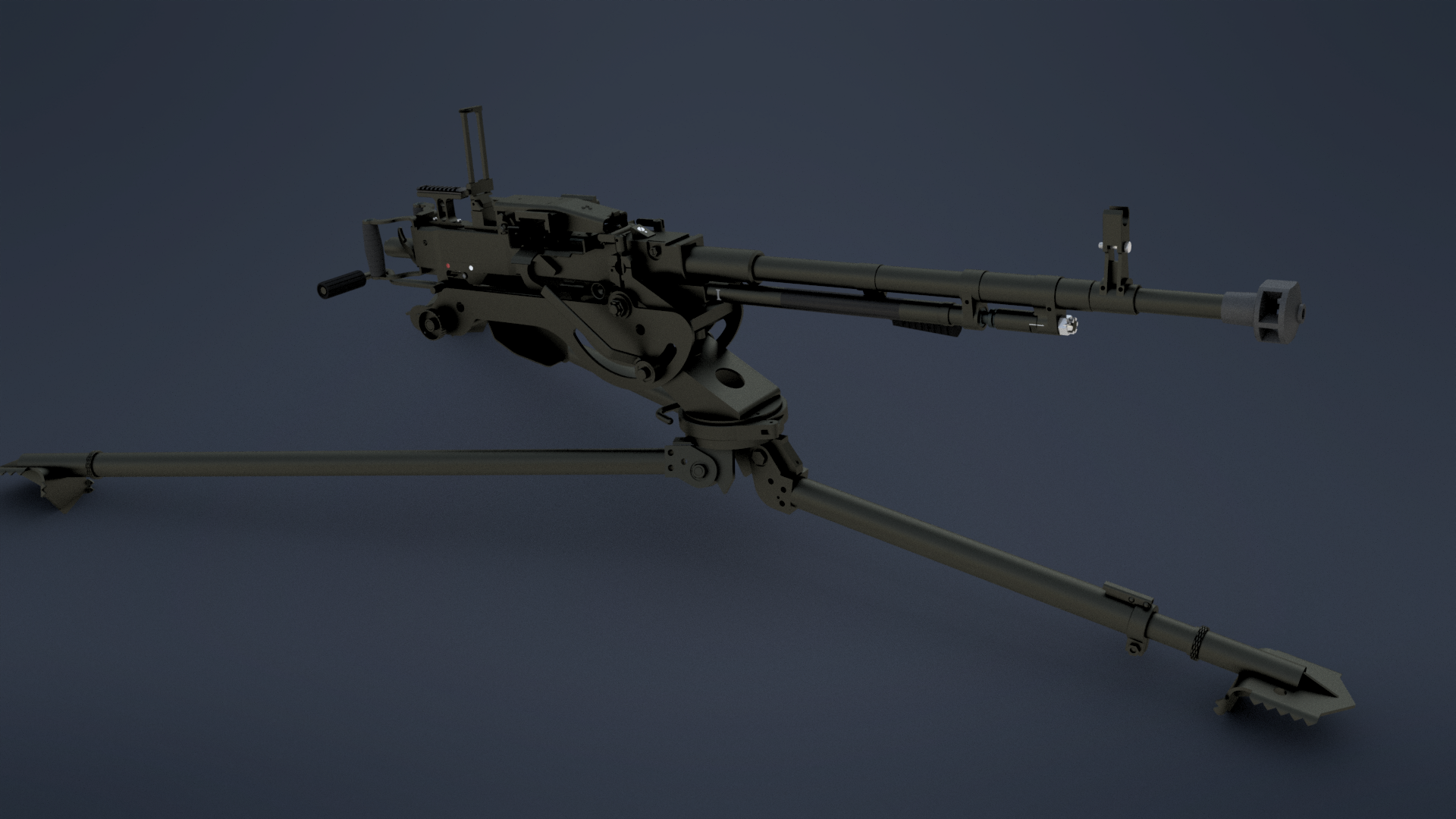

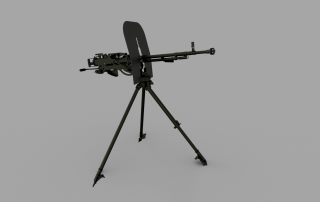

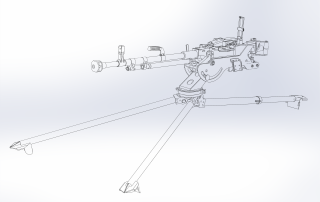

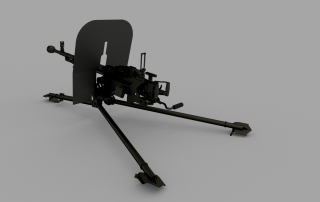

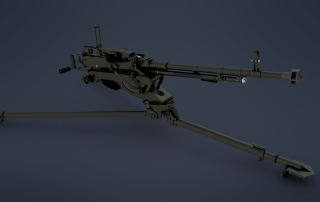

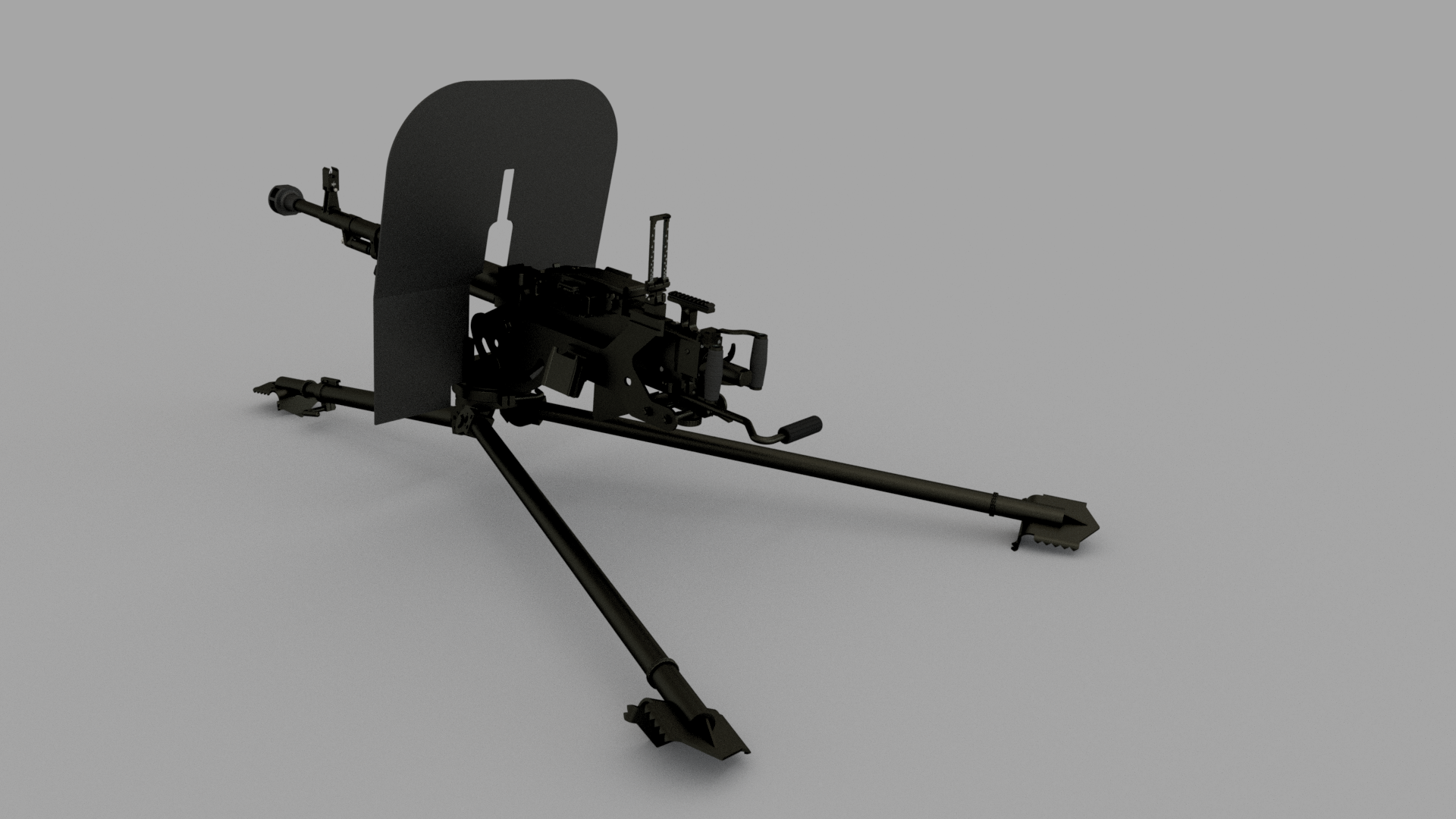

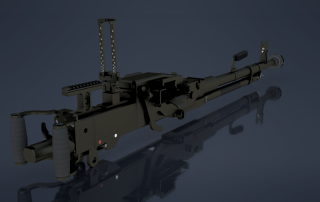

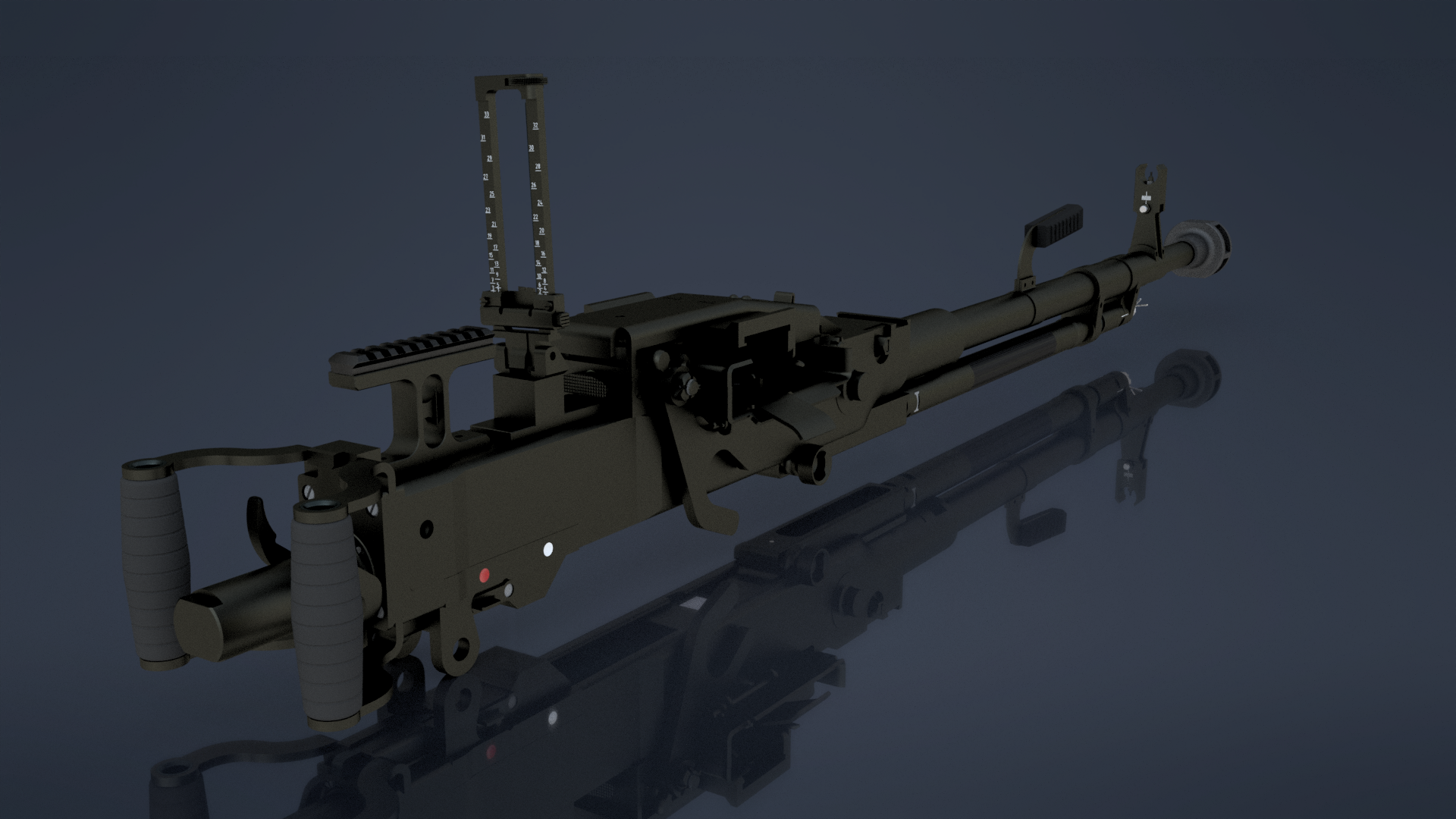

12.7×108 mm Heavy Machine Gun DNM/127-01

APPLICATION AND PRINCIPLE DATA:

12.7 mm Heavy Machine Gun “DNM” is an automatic weapon made as a modified version of the 12,7 mm DShKM Heavy Machine Gun with variations in calibers: – 12,7×108 mm and 12,7×99 mm NATO. It has capability for firing at any target on the ground, at low-flying aircraft, drones, paratroopers, light armored vehicles and with additional option for anti-sniper purpose.

PERFORMANCE:
Effective range:

  • To the air: 2 200 m
  • On ground: 2 000 m
  • Armour penetration:
  • From 900 m: 15 mm
  • From 550 m: 20 mm

BASIC TECHNICAL DATA:

• Caliber: 12,7×108 mm
• Caliber: 12,7×99 mm NATO
• Muzzle Velocity: 870 m/sec
• Sighting range: 3 300 m
• Sighting radius: 1 114 mm
• Rate of fire: 650 rds/min
• Total weight 33 kg (in firing position):
• Length of Gun Body: 1 590 mm
• Barrel length: 1 070 mm

AMMUNITION EMPLOYING

12,7 mm Heavy machine Gun “DNM” is operating by 12,7×108 mm or 12,7×99 mm NATO ammunitions:

2,7 mm Heavy Machine Gun “DNМ” is operating by
12,7×108 mm and 12,7×99 mm NATO ammunitions:
• Armor-Piercing-Incendiary (API);
• Armor-Piercing-Incendiary-Tracer (APIT)
• Armor-Piercing (AP)
• Training
